Sequel-bass-guitar

Sequel

Posted in Obsession Series



... The 24 fret sequel version to Legend Bass Guitar...

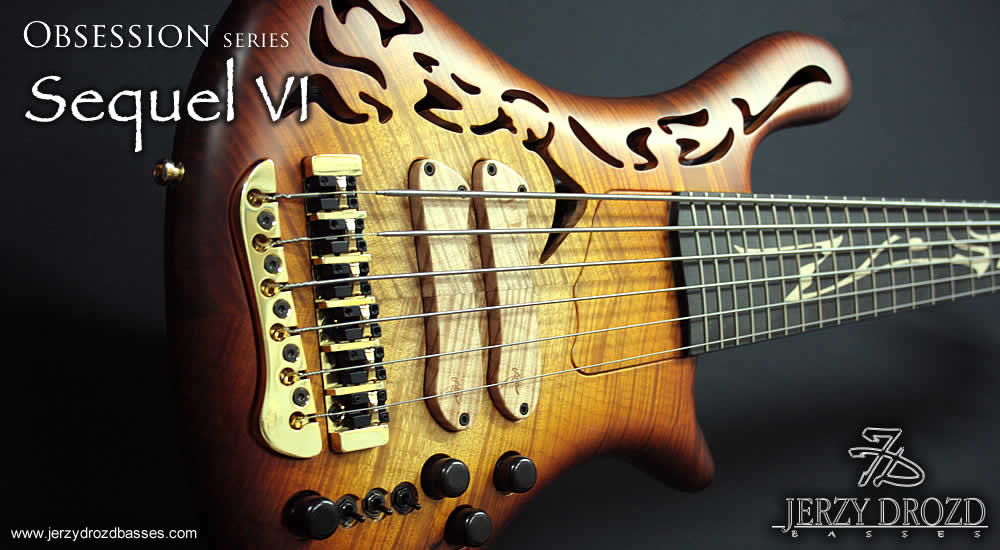

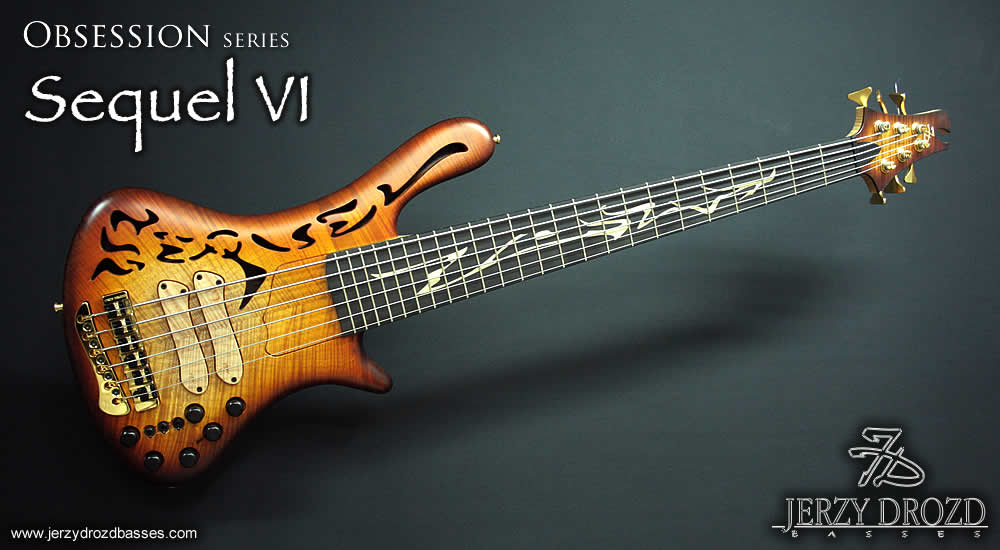

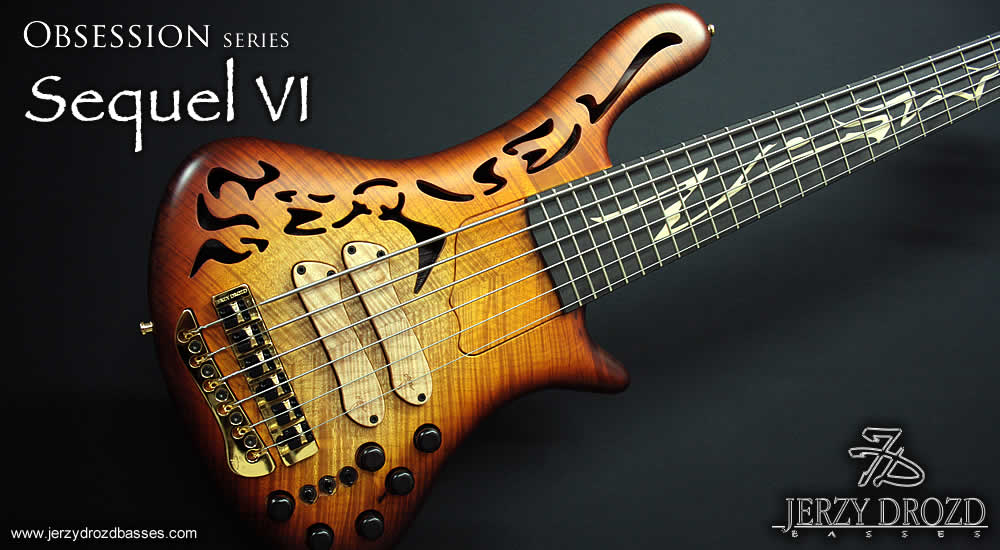

sequel-bass-guitar-VISequel VI (6 strings) with optional piezo bridge, flamed maple pickup covers

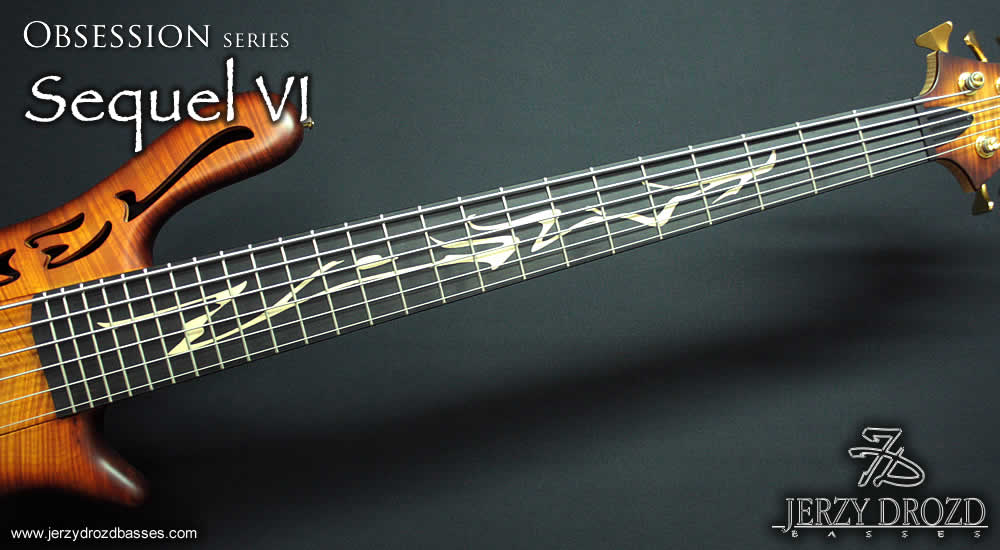

vintage sunburst finish, gold hardware and "Ray of Light" inlay made from maple wood.


THE SEQUEL TO LEGEND

General Info
Views
Specifications
Videos
Available Sequel basses

Sequel bass guitar is direct response to all players requesting version of Legend bass guitar in 24 fret version.

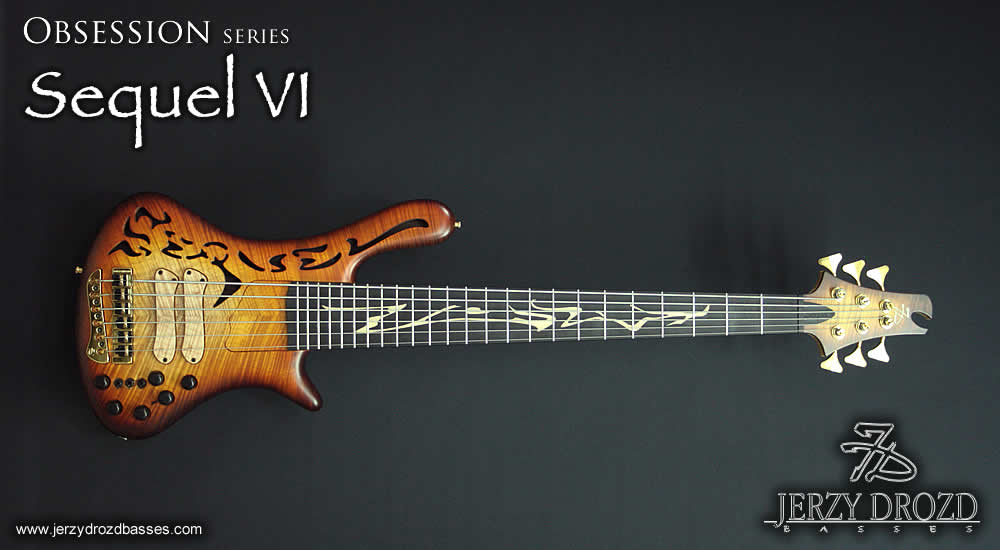

sequel-bass-guitar-6-strings

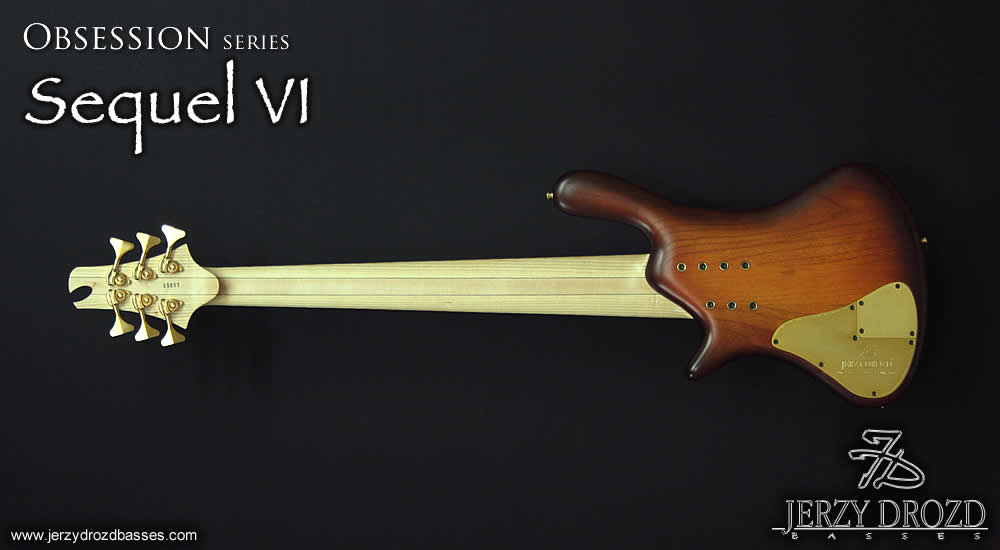

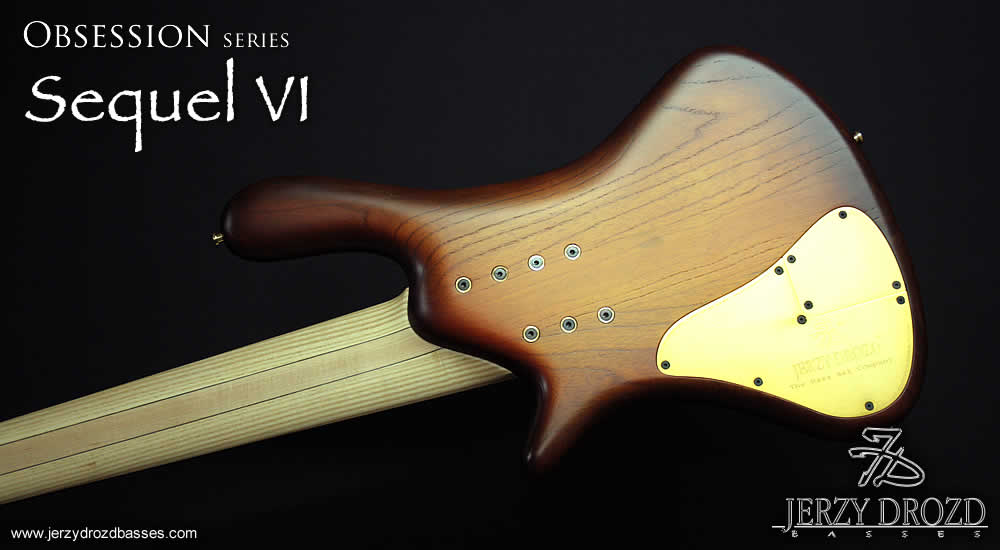

sequel-bass-guitar-6-strings-back

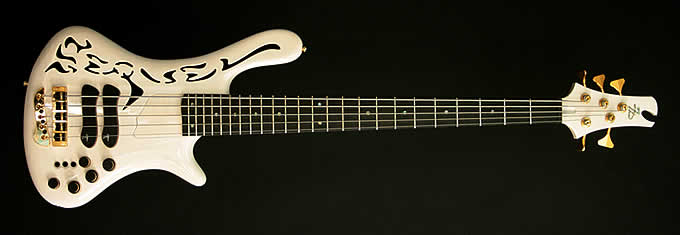

Sequel-V-blanco

Sequel-V-blanco-back



For more views of Sequel please check right column gallery "Sequel VIEWS"





Sequel bass guitarspecifications
String version  4 string   5 string   6 string    7 string     8 string     9 string     10 string     11 string
Scale 34" optionaly 35"
Standard Frets nº      24 medium frets; 2,13mm wide and 0,99mm high
Is 28 fret version available?
      no
Is 36 fret version available?
      no

Body     swamp ash
Construction     bolton neck
Neck     3 piece, maple/ash thin wenge runners

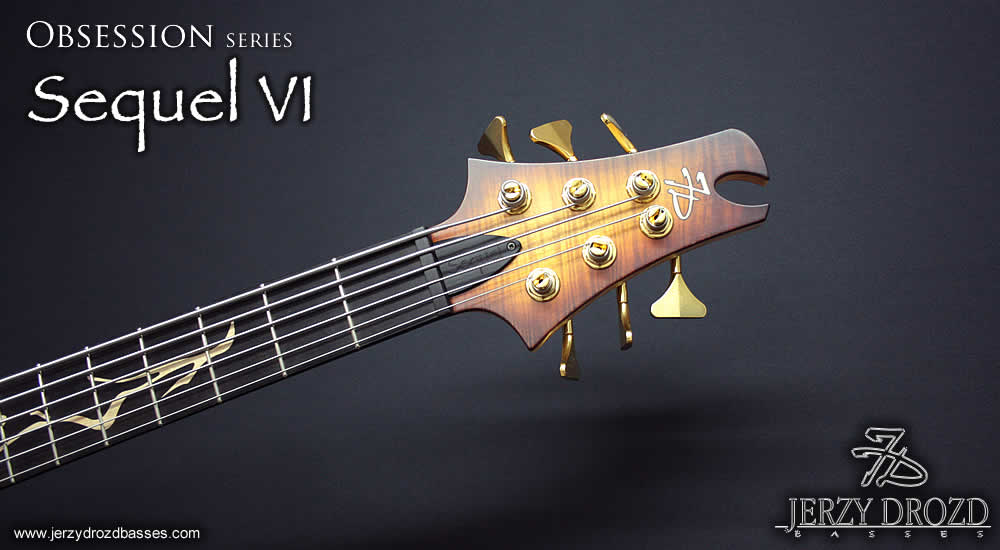

Headstock     Angled 8º grade; headstock top matching body top
Fretboard     maple
Fingerboard Radius     20" (508mm)
Inlays     2mm diameter side dots, Frontal 6mm diameter markers are optional
    upon request at no charge
Nut     Ebony
width at nut  38mm 45mm  52mm  54mm  n/a n/a n/a n/a
width at 24th fret  62mm 76mm 92mm 100mm  n/a  n/a  n/a  n/a
Thickness 1st fret 20mm
Thickness 12th fret 22mm
Tuners     Hipshot Ultralite

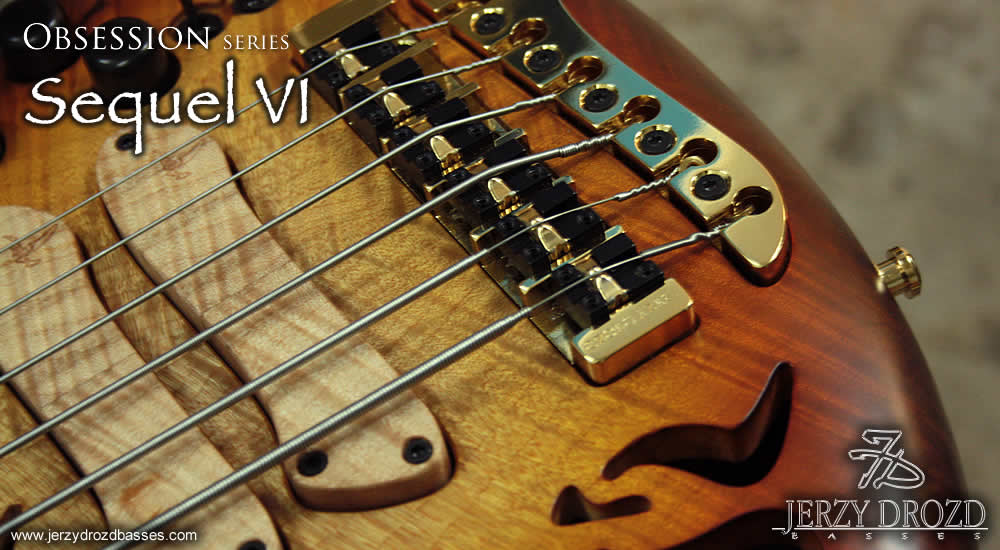

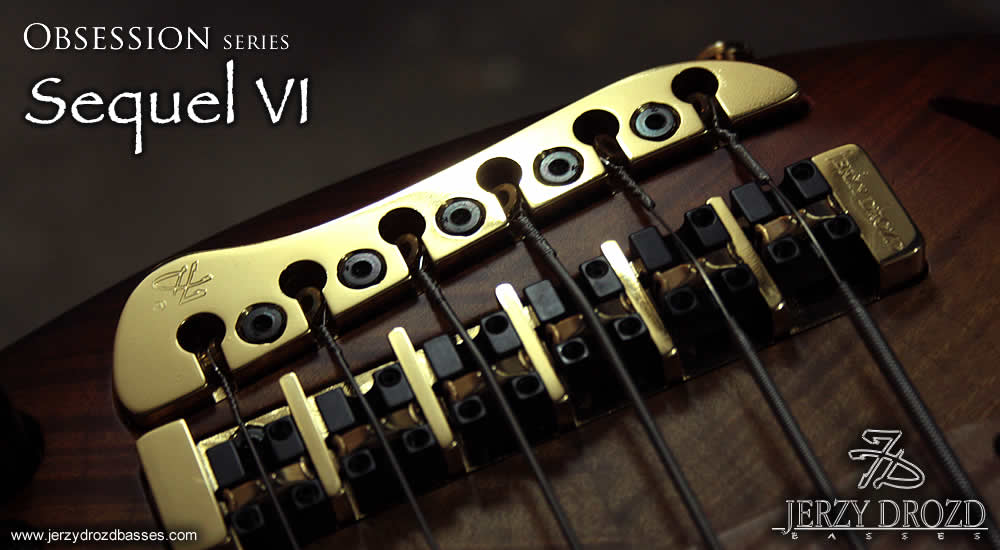

Bridge     Jerzy Drozd propietary two-piece bridge, fully adjustable. Aluminium or brass
strings spacing @ bridge 19mm 18,5mm 18,5mm  17mm  n/a  n/a  n/a n/a
Hardware color Gold
Pickups

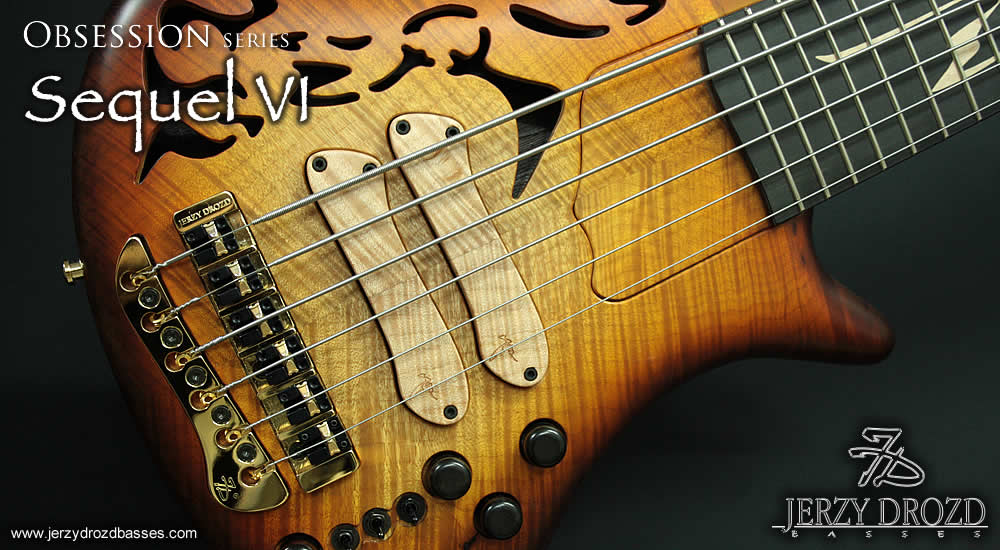

    JeDXS bass pickups -Jerzy Drozd split single coil type with covers made from khaya and
    ebony woods, other woods are also available
Electronics     Aguilar OBP-3 active preamp - 3 band
Controls     Volume, Balance, Treble, Middle, Bass, Passive tone, Active/pasive switch and Mid
    frequency selector
Knobs

    Wooden dome knobs, 18mm diameter
Body finish     Poliurethane/ Acrilic satin finish
Neck finish     Poliurethane/ Acrilic satin finish
Strings     SIT 40-60-80-100-130
Case     4-7 string basses include light foam case, 8 strings and up include gig bag
weight (*) 3,2kg
(7lbs)		 3,7kg
(8.16lbs)		  n/a n/a  n/a  n/a n/a  n/a

(*) these numbers are average for standard Signature bass guitar and may vary depending on chosen woods and body version (24, 28 or 36 fret version)

  • All features and specifications subject to change without notice.
  • Prices may vary depending on version, chosen finish and hardware.







Katsuji Morioka at Jerzy Drozd Basses Both at Winter NAMM 2006
playing Sequel VI




Blue Car - Yacoub Abu Ghosh - LIVE
playing his blue Sequel VI







These are actualy available Sequel basses
