Signature Bass Guitar



... No frontiers, no boundaries, no compromises, just The Bass Art at Best, Enjoy it and taste it. It´s just pure limitless Experience ...



General Info

Our top of the line SIGNATURE™ bass probably is the best expression of what we understand as "Bass Art".

Although you will find the same electronics and pickups on our other creations, this bass was taken to extreme levels.

The thirteen-piece laminated neck includes flamed maple, purpleheart, bubinga, and wenge.

It also has top quality woods used on the body, with spalted maple wood on top and burl, crotch, or flamed walnut on the bottom and different thin veneers between these woods.

Our proprietary JeDXD thin humbucker pickups, along with an Aguilar OBP-3 3-band active preamp with a 400Hz/800Hz frequency mid selector, are the perfect companions to this incredible wood amalgam in order to transmit all the fidelity and richness of the Signature™ bass.



Specifications


Signature bass guitar specifications
String version  4 string   5 string   6 string    7 string     8 string     9 string     10 string     11 string
Scale standard 34"(865mm), optionaly 35" (889mm)
Standard Frets nº      24 medium frets; 2,13mm wide and 0,99mm high
Is 28 fret version available?
     yes      For more info on 28 body style please go here
Is 36 fret version available?
     yes      For more info on 36 body style please go here

Body     marbled white maple,
Construction     neck thru
Neck     13 piece, maple & purpleheart, with thin wenge and maple runners
Truss rod     Double action, heavy duty made from stainless steel
Carbon fiber stiffness bars     Yes, 2 bars alongside of truss rod
Headstock     Angled 8º grade; headstock top matching body top
Fretboard     Ebony
Fingerboard Radius     20" (508mm)

Inlays     2mm diameter side dots, Frontal 6mm diameter markers are optional
    upon request at no charge
Nut     Ebony
width at nut  38mm 45mm  52mm  54mm  n/a n/a n/a n/a
width at 24th fret  62mm 76mm 92mm 100mm  n/a  n/a  n/a  n/a
Thickness 1st fret 20mm
Thickness 12th fret 22mm
Tuners     Hipshot Ultralite
Bridge     Jerzy Drozd propietary two-piece bridge, fully adjustable. Brass, 24 Carat pure Gold plated
strings spacing @ bridge  20mm 18,5mm 18mm  17mm  17mm  n/a  n/a n/a
Hardware color Gold

Pickups
    JeDXS bass picups - Jerzy Drozd split single coil type with wood covers
Electronics     Aguilar OBP-3 active preamp - 3 band
Controls     Volume, Balance, Treble, Middle, Bass, Passive tone Mid freq selector,
    active/passive selector,
Knobs     Wooden dome knobs, 18mm diameter
Body finish     Polyurethane/Acrilic satin finish
Neck finish     Polyurethane/Acrilic satin finish
Strings     Jerzy Drozd "Classics"
Case     4-7 string basses include light foam case, 8 strings and up include gig bag
weight (*) 3,2kg
(7lbs)
3,7kg
(8.16lbs)
 n/a n/a  n/a  n/a n/a  n/a

(*) these numbers are average for standard Signature and may vary depending on chosen woods and body version (24, 28 or 36 fret version)



  • All features and specifications subject to change without notice.
  • Prices may vary depending on version, chosen finish and hardware.







Views





 Jerzy Drozd Signature Custom Bass Guitar 6 strings
Jerzy Drozd Obsession Signature VI 28 Fretless Custom
28 frets body style, Black Poplar Burl Top, MIDI, piezo bridge, abalone binding and "Quo Vadis" Mother of Pearl inlay

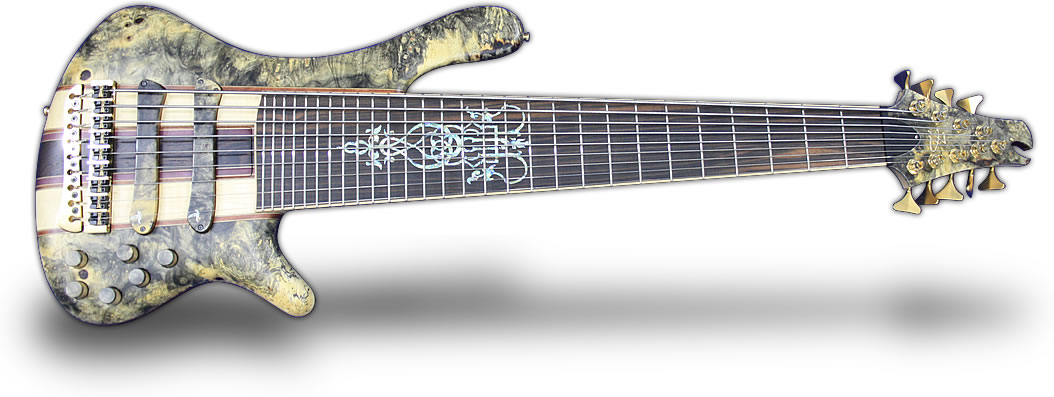

signature XI
Jerzy Drozd Obsession Signature IX 28 Custom
28 frets body style, Buckeye Burl Top, piezo bridge, maple binding on ebony macassar fretboard and "Quo Vadis" Paua abalone inlay


Videos

Jeremy Seitzer and "Road Song" with  Jerzy Drozd 6 string Custom Signature 28
